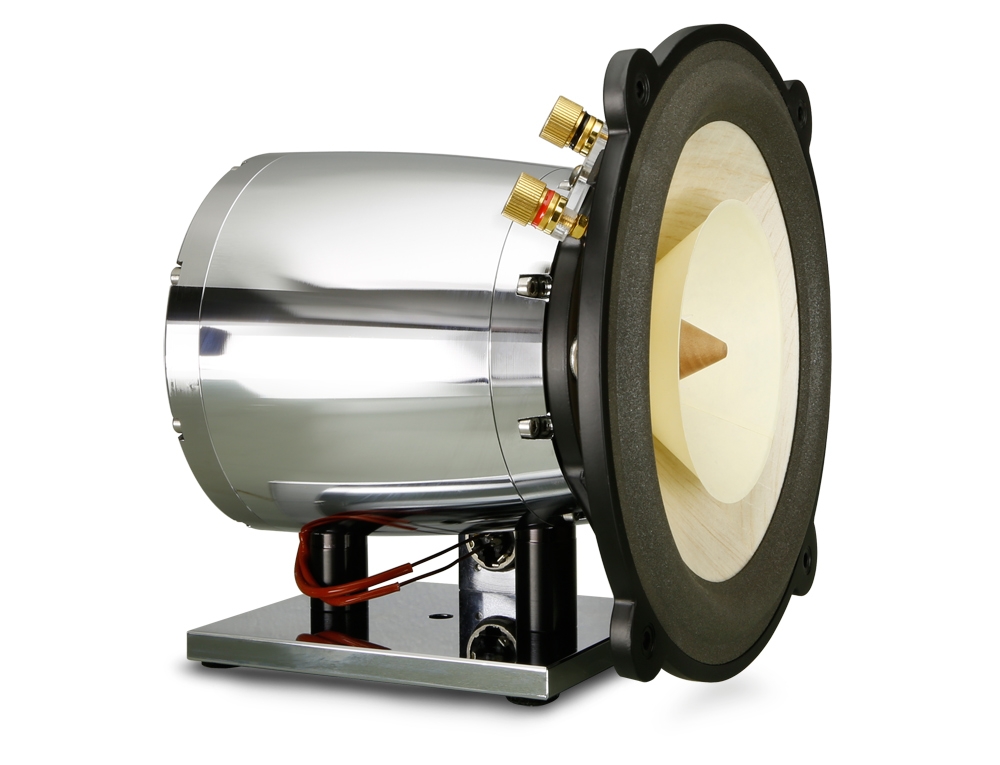

AC - X2



The rediscovery of natural sound:
Voxativ fieldcoil technology combined with a cone made from real wood.



The price refers to a matched pair.

Description

The AC-X2 is driven by a large field coil instead of a permanent magnet. With this magnetic force, the driver reaches the physical maximum and an extreme dynamic performance.

The AC-X2 has a Qts between 0.25 and 0.6 depending on the supply voltage which can be set from 6 to 18 volts. It enables the user to adjust the driver to all useful installation conditions and playback requirements. The optimal value in our experience is 12V.



Different to the AC-X unit this driver is equipped with a wooden cone for ultimate bass response. Just imagine how wonderful an open baffle or backloaded horn design will sound using this drive unit. Simply power it up with an 1 watt single ended tube amplifier.



Delivery includes a switching power supply.

Further power supply options are:

• N1 - A transformer power supply 12V fixed

• N3 - An adjustable power supply. Switchable voltage from 12V to 19 V DC in 0.5V steps.

• N2 - A high-end battery power supply 12V fixed, with loading automatics



Enclosure possibilities:

• Fullrange mode in all high-end back-loaded horns (free schedule available)

• Fullrange mode in an open baffle design (free schedule available)

• As a high- and midrange driver combined with a fast dipole woofer

• As a fronthorn driver, fullrange or 2-way





Technical Data

Frequency Response	20 - 20.000 Hz
Efficiency*	max. 108 dB / 1W / 1 m in recommended housings
Capacity	50 W nom / 100 W mus
Impedance [R]	10,7 Ohm
Complex Impedance [Z]	16,0 Ohm
Resonant Frequency	29,0 Hz
Mechanical Q-Factor Qms	3,1 / 12V
Electrical Q-Factor Qes	0,40 / 12V
Q-Factor Qts	0,354 / 12V
Equivalent volume [VAS]	148,0 Ltr.
Xmss	10 mm
Depth	6,5" / 16,5 cm
Install diameter	7,5"  / 19,0 cm
Weight	26,5 lbs / 12,0 kg

* A fullrange driver’s efficiency depends on the frequency response and does not follow a
standard calculation in the context of Thiele / Small parameters.
