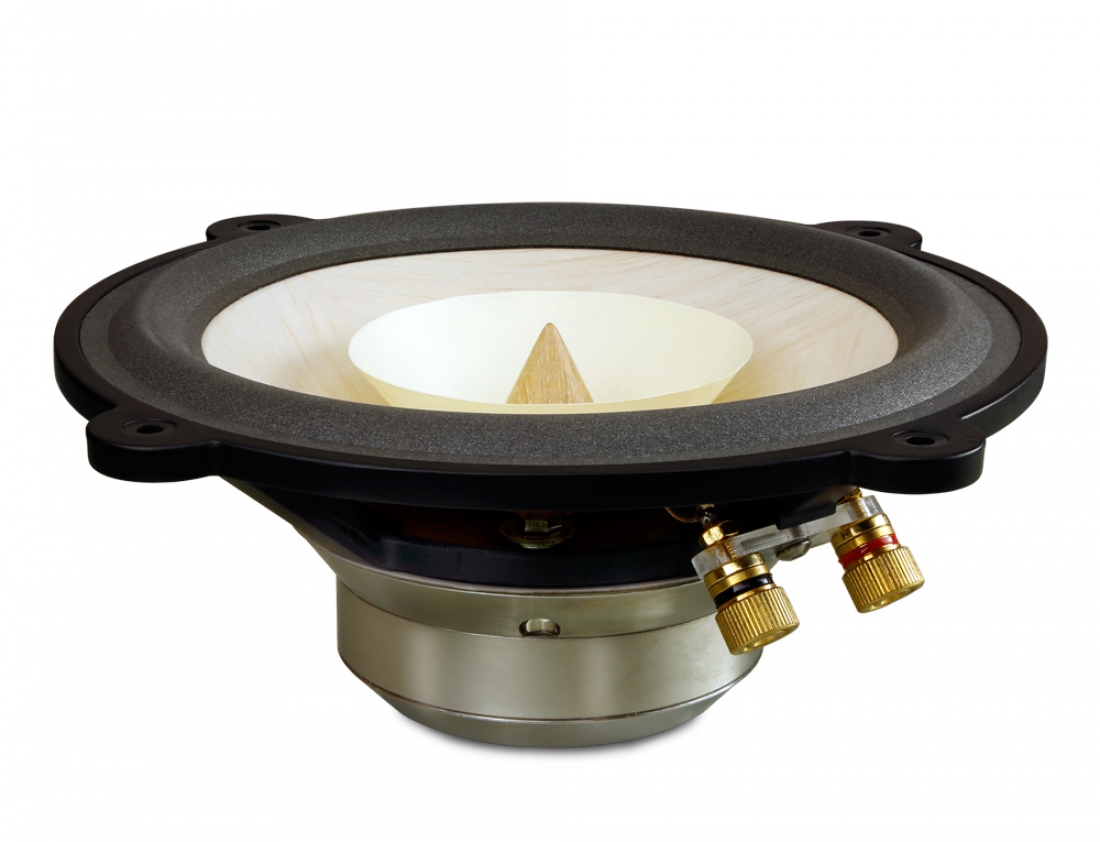

AC-Pi-Nd



The entry Neodymium widebander equipped with a cone made from real wood.
More resolution and optimized bass response.



The price refers to a matched pair.

Description

The Voxativ AC-Pi-Nd driver has a magnetic field of 21.500 Gauss. It is equipped with a Neodymium magnet. Neodymium is a rare-earth metal that can supply a very high magnetic induction. As a consequence, the AC-Pi-Nd provides a huge magnetic flux density in the air gap and generates high impulse force for the underhung voice coil.



The AC-Pi-Nd is equipped with a wooden cone. With this you can optimize resolution and bass response of your DIY speaker system without compromising an accurate stereo image.



Enclosure possibilities:

• Fullrange mode in all high-end back-loaded horns (free schedule available)

• As a high- and midrange driver combined with a fast dipole woofer

• As a fronthorn driver, fullrange or 2-way



Technical Data

Frequency Response	20 - 20.000 Hz
Efficiency*	98 dB / 1W / 1 m in recommended housings
Capacity	50 W nom / 100 W mus
Impedance [R]	10,7 Ohm
Complex Impedance [Z]	14,0 Ohm
Resonant Frequency	45,0 Hz
Mechanical Q-Factor Qms	4,24
Electrical Q-Factor Qes	0,44
Q-Factor Qts	0,46
Equivalent volume [VAS]	70,0 Ltr.
Xmss	10 mm
Depth	3,0" / 7,5 cm
Install diameter	7,5"  / 19,0 cm
Weight	5 lbs / 2,3 kg
